Petzl Collinox

Description

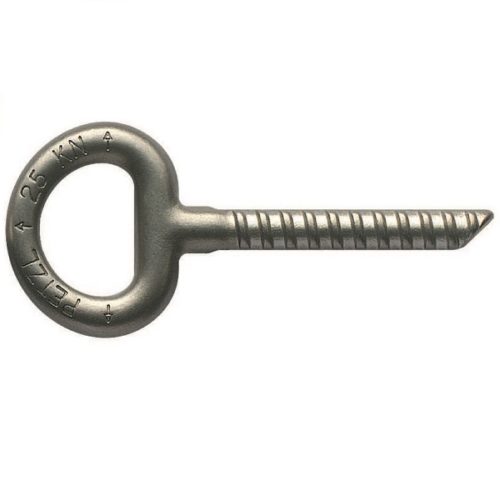

The Petzl Collinox is a 10mm x 70mm forged stainless-steel glue-in bolt with a textured stem for better application and adhesion of resin. This item comes as a pack of 10 (single units not sold separately). In order to make full use of the Petzl Collinox anchor, you’ll also need the Petzl Ampoule Collinox resin glue.

Specifications

Description

• Diameter: 10 mm
• Weight: 95 g
• Granite, gneiss higher than 80 MPa: preliminary testing recommended
• Hard limestone higher than 80 MPa: preliminary testing recommended
• Limestone and medium sandstone 80 MPa to 45 MPa: preliminary testing recommended
• Soft rock (soft sandstone, limestone) lower than 45 MPa: preliminary testing required
• Very high quality concrete (civil engineering structure) higher than 50 MPa: preliminary testing recommended
• Medium quality concrete from 25 to 50 MPa: preliminary testing recommended
• Length: 7 cm
• Drilling depth: 7-7.5 cm
• Drilling diameter: 12 mm
• Type of installation: G101AA00 glue (or other glues approved by Petzl)
• Sugested drying time: 40 min -> 10 h
• Resistance to cutting on concrete 50 MPa: 25kN
• Pull-out strength in concrete 50 MPa: 15kN

Please note: times above are given for Petzl Ampoule Collinox glue, so times may vary depending on the glue used and on the external environment.
