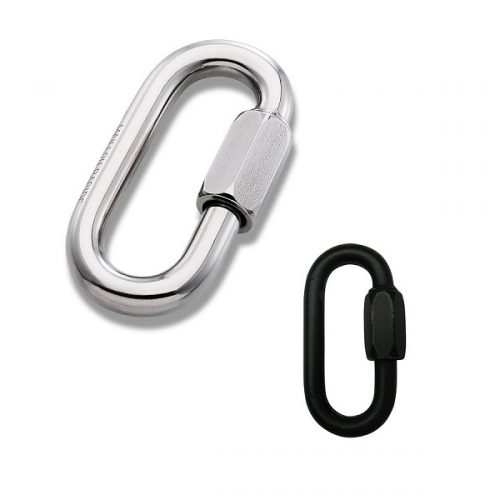

Maillon Rapide Standard Quick Link

Description

Specifications

• 6 mm – Galvanised Steel – Ø: 6 mm – L.T: 57 mm – L.I: 45 mm – O: 7.5 mm – WWL: 400 kg – BL: 20kN – Not PPE
• 7 mm – Stainless Steel – Ø: 7 mm – L.T: 66 mm – L.I: 52 mm – O: 8.5 mm – WWL: 900 kg – BL: 45 kN
• 8 mm – Galvanised Steel – Ø: 8 mm – L.T: 104 mm – L.I: 88 mm – O: 17.5 mm – WWL: 640 kg – BL: 32 kN
• 8 mm – Stainless Steel – Ø: 8 mm – L.T: 74 mm – L.I: 58 mm – O: 11 mm – WWL: 1100 kg – BL: 55 kN
• 9 mm Gavanised Steel – Ø: 9 mm – L.T: 80 mm – L.I: 62 mm – O: 11 mm – WWL: 900 kg – BL: 45 kN
• 10 mm – Galvanised Steel – Ø: 10 mm – L.T: 89 mm – L.I: 69 mm – O: 12 mm – WWL: 1100 kg – BL: 55 kN
• 10 mm – Stainless Steel – Ø: 10 mm – L.T: 89 mm – L.I: 69 mm – O: 12 mm – WWL: 1800 kg – BL: 90 kN
