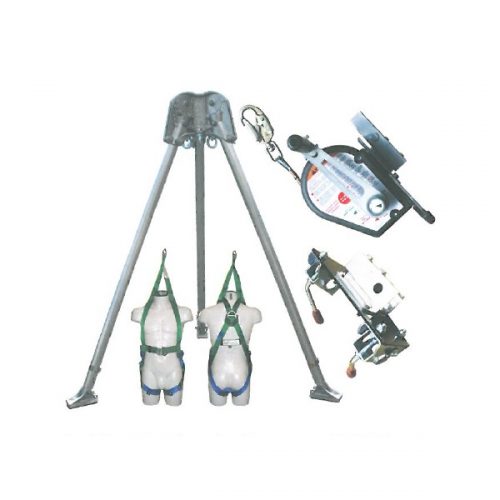

Abtech Safety T3 Two-Person Tripod – Kit 6

Description

Includes

• T3 Two Person Tripod
• 30 m Winch
• Rescue Harness
• Brackets

Abtech Safety T3 Two-Person Tripod – Kit 6

“The tripod is the basis of a confined space entry and rescue system giving a strong, stable, and portable anchorage point for fall arrest and recovery systems. One worker can carry and erect the sturdy but lightweight aluminium alloy Tripod. For tripod stability, the tripod legs may be individually adjusted. The T3 has 6 anchor points tested to EN795. The 3 overhead pulleys hold up to 11 mm rope. The extra anchor points may be used with pulleys for a double roped rescuer, back-up system, airlines, communication lines, medical kits, tool kits etc. Available with a padded carrying bag.”

Specifications

• Designed for 2 persons, SWL 250Kg 6:1 safety ratio
• Maximum Height: 2.4 meters
• Height Closed: 1.4 meters
• Maximum Base: 1.7 meters
• Minimum Base: 1.1 meters
• Weight 19.4 kg

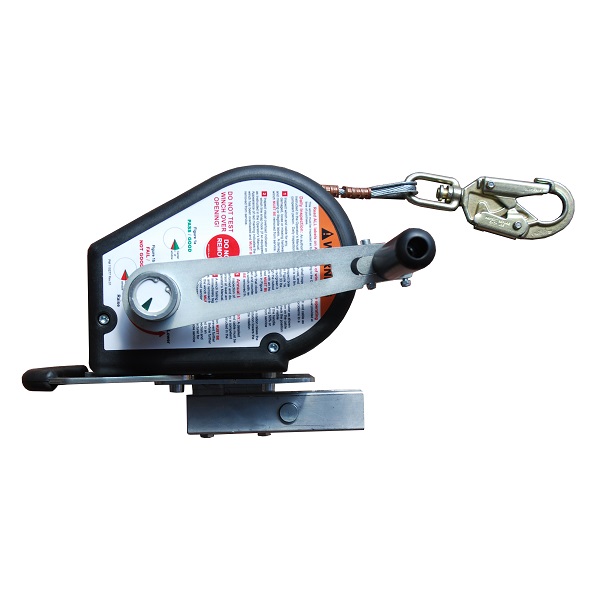

30 m Winch

“30 m Man Riding Winch. 5 mm Galvanised Steel cable. Mechanical Advantage of 11:1. As a single reeved system, the Winch is capable of 140 kg. As a double reeved system, the Winch is capable of 240 kg. Features brake wear indicator, folding cranking handle, secondary brake, high impact resistant plastic cover.”

Rescue Harness

“A full body harness with three attachment points. A dorsal (rear) and chest attachment points both suitable for fall arrest and an extended attachment point, which maintains the user at a near vertical suspension when being lifted or lowered in a work or rescue situation with limited access.”

Certifications

EN 795 type B, EN 1496, EN 361, EN1497
